6-locker module

Non-refrigerated module
H 1550 x L 1680 x P 650 mm
This module is not available as a refrigerated version.

Size of lockers
H 600 mm | L 450 mm | P 620 mm

.
.

8-locker module

Non-refrigerated module
H 2050 x L 960 x P 580 mm
This module is not available as a refrigerated version.

Size of large lockers
H 490 mm | L 336 mm | P 540 mm

Size of small lockers
H 248 mm | L 336 mm | P 540 mm

15-locker module

Refrigerated module
H 2176 x L 1400 x P 725 mm
Non-refrigerated module
H 1930 x L 1400 x P 725 mm

Size of lockers
H 248 mm | L 330 mm | P 540 mm

Le Casier Français module 15 lockers

21-locker module

Refrigerated module
H 2176 x L 1400 x P 725 mm
Non-refrigerated module
H 1930 x L 1400 x P 725 mm

Size of lockers
H 140 mm | L 330 mm | P 540 mm

Le Casier Français module 21 lockers
Le Casier Français module 24 lockers

24-locker module

Refrigerated module
H 2176 x L 1300 x P 725 mm
Non-refrigerated module
H 1930 x L 1300 x P 725 mm

Size of lockers
H 180 mm | L 190 mm | P 540 mm

Le Casier Français module 28 lockers

28-locker module

Refrigerated module
H 2176 x L 1220 x P 725 mm
Non-refrigerated module
H 1930 x L 1220 x P 725 mm

Size of lockers
H 140 mm | L 175 mm | P 540 mm

Multi-product module

Non-refrigerated module
H 2050 x L 1260 x P 450 mm

This module is designed for different types of products that do not require refrigeration (egg boxes, strawberry or mushroom trays, etc.).

Order module

Module
H 2030 x L 700 x P 600 mm

Screen
22 inches
H 487 mm | L 274 mm

Placement of White modules

Our vending machines are available for sale and rent – each module can be moved at your convenience..

Blue Graphic Charter

A complete RAL colour chart is at your disposal to help you pick the right colours for your machine.

White module combination

Refrigerated and non-refrigerated modules can be combined in a single dispenser.

Blue galvanized steel

Our dispensers are made of stainless steel and are galvanised..

White cold management

For optimum preservation quality, the temperature can be managed independently per module.

Blue lighting system

Le Casier Français is equipped with a LED lighting system allowing the optimal highlighting of your products. The lighting switches off automatically once the sale is completed.

White control module

An order and payment module H 2030 x W 700 mm x D 600 mm is to be added to your dispenser. This module has a secure lock and an alarm with SMS notification (optional). It requires a wired connection or the installation of a router by us to ensure its smooth operation.

Payment methods

You can select and combine several means of payment on your Casier Français according to your preferences.

Payment by Blue bank card

Credit card

The most used and secure method, it includes a PinPad and a printer for purchases over 20€. This way, the money is directly transferred to your account.

Blue contactless payment

Contactless

Used for amounts less than or equal to 30 euros. There are two types of contactless payment: Ingenico, which requires the opening of a special merchant account (negotiable fee linked to the bank of approximately 0.5%) and Nayax with transfers once or twice a month (2% commission).

Payment by cash Blue

Cash

For cash payment, you can choose a coin slot combined with a banknote reader. The coin slot accepts all coins and gives change. The banknote reader accepts banknotes from 5 to 20 euros.

All-in-one

The Nayax combines payment by credit card and contactless. It integrates a Pinpad on a touch screen, a contactless system, a magnetic stripe and a chip reader. The Valina requires the opening of a special merchant account.

Online

With Le Casier Français, you can sell your products online on coqillico.fr and thus offer this option to your customers. The user orders and pays on the site via his/her credit card. Thanks to a barcode scanner, RFID chip, QR code or simply a code to be entered on the distributor’s screen, he/she retrieves his/her order.

fruit and vegetable distributor

22" touch screen

Le Casier Français is equipped with a 22 » touch screen and a « manager » interface for the supply and maintenance of the dispenser. Your customers can easily access the products offered for sale, select them and display them in the basket.

Control terminal size
H 2030 x L 700 mm x P 600 mm

Distribution method

Number

The customer selects the locker according to his/her needs.

First in First Out | ‘‘FIFO’’

The distributor chooses which locker to open.
The first products stored are the first ones sold.

Call & Collect

The customer can place an order with the producer by telephone. He/she is given a code that he/she can use on the distributor to retrieve his/her order.

_

Connected monitoring

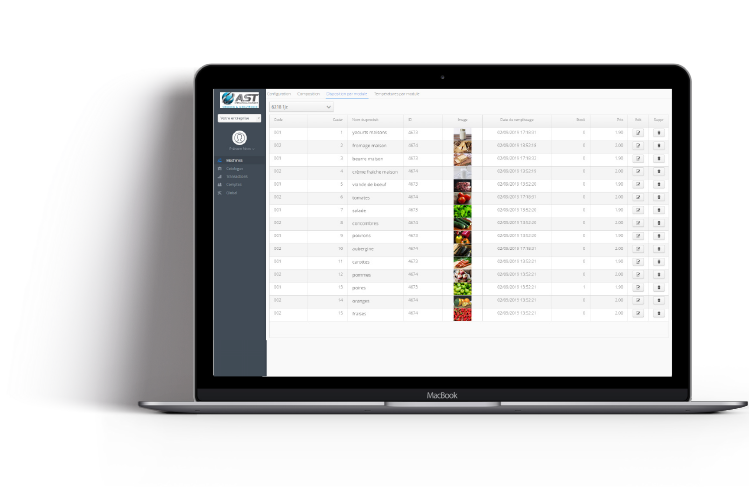

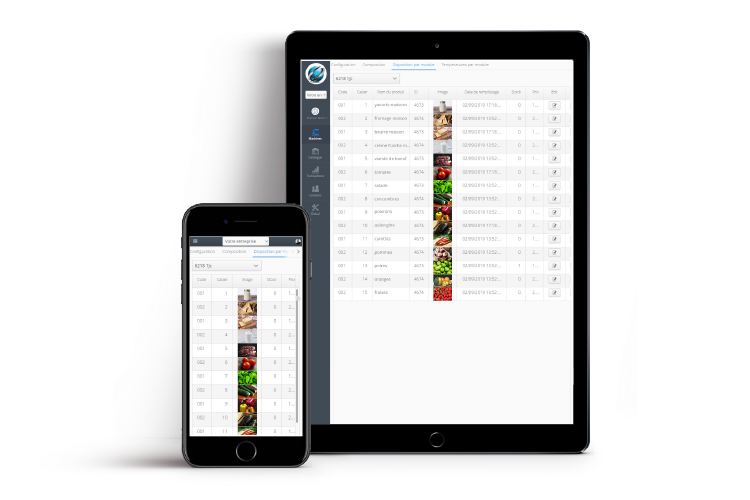

Le Kiosque

When you purchase your locker vending machine, you will have access to the « Le Kiosque » app that allows you to set up and manage the machine from any device (PC, tablets, smartphones). This management platform makes Le Casier Français a connected vending machine that is easy to manage.

Le Kiosque gives you:

– access to the distributor’s information via an application and various media
– the choice to link your merchant website to the distributor
– the possibility to offer the Click & Collect option to your customers
– the guarantee of temperature traceability

Distributor Management

You can remotely manage your stocks, products, prices, photos, sales, event notifications by sms (low stock, temperature overrun alert…).

The purchase of your vending machine allows you the optimal management of the entire distribution process. Thus, your food vending machine offers you the possibility to set up and remotely control all the information necessary to ensure that the setting up and sale of the products takes place in the best possible conditions..

buy vending machine

_

Cooling management

A "Made in Le Casier Français"
innovation

With Le Casier Français, each module has its own freshness. Le Casier Français allows you to manage the cold independently per module. You can therefore offer products with different preservation methods in a single dispenser.

The temperature can be set to the nearest degree per module, as well as the deactivation of the cooling system, to optimise energy consumption. With the individual display of each thumbnail on the screen, you can see the temperature of the product of your choice.

Our refrigerated lockers are equipped with 14 mm double glazing for reliability and safety.

Le Casier Français is the first dispenser capable of operating at an ambient temperature of up to 40°. In addition, we offer the possibility to compose corner or opposite layouts for the refrigerated modules.

The maintenance of a cooling unit does not affect the correct operation of the other modules. With Le Casier Français, you have online traceability and automatic archiving of the temperature of each of your modules.

To help maintain the quality of the products in the vending machine, we place food safety at the heart of our priorities!

Want to purchase your vending machine and customise it? Nothing could be simpler! We have a professional and attentive team that will be able to meet all your expectations.

It is therefore possible to display your vending machine in the colours of your company, your activity or simply according to your tastes! To proceed with the customisation and purchase of your vending machine, do not hesitate to contact us, we will try to meet all your needs as soon as possible.
